Custom Rim Wheels
by GTTS – Crafted for Precision and Performance
Tailored Rims for Diverse Applications
Our specialized rim wheels are engineered for various industries, including aviation ground support equipment (GSE), industrial machinery, agriculture, and specialty applications. Each rim is crafted to meet exacting standards, offering superior performance across diverse conditions.
Our specialisation
Hub-welded rims
Split wheel rims
Heavy-duty deep-drawn rims (up to 15 inches)
Our rims come with a wide range of RAL and custom color options, applied using our advanced powder-coating technology, ensuring long-lasting protection and a premium finish.
Our specialisation

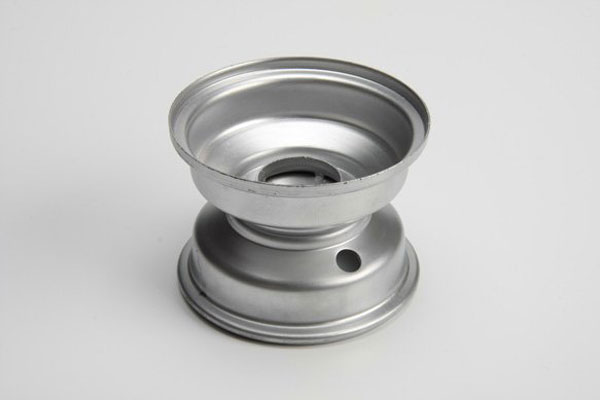

Hub- Welded Rims
Precision-engineered hub-welded rims for enhanced durability and performance across various industries.
Our specialisation

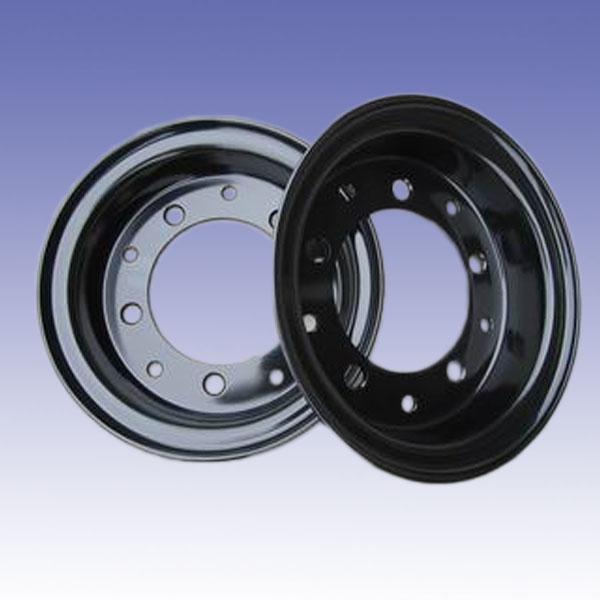

Split Wheel Rims
Versatile split wheel rims designed for easy maintenance and reliable performance in demanding conditions.
Our specialisation
Heavy-Duty Deep-Drawn Rims (up to 15 inches)
Robust, heavy-duty deep-drawn rims up to 15 inches, built to withstand extreme applications in aviation, industrial, and agricultural sectors
Our rims come with a wide range of RAL and custom color options, applied using our advanced powder-coating technology, ensuring long-lasting protection and a premium finish.
Why Choose GTTS?
Custom Design
We excel at designing rim wheels based on your unique specifications, offering bespoke solutions that fit your specific application.
Smaller Batch Production
GTTS can accommodate smaller production runs with significantly shorter development cycles, ensuring timely delivery without compromising quality.
State-of-the-Art Manufacturing
Our facility is equipped to produce deep-drawn rim wheels under 15 inches with precision, ensuring consistency across all products.
Advanced Welding Capabilities
Our specialized SPM pulse MIG welding setup and TIG welding technology cater to special applications, ensuring durable and robust construction for all rim types.
Our Rim Wheel Configurations
We offer a range of rim wheels designed for various load capacities and speeds, with customization available for bearings, hub lengths, and other parameters to meet your unique requirements.
| No | Rim Size | Thickness (mm) | Bearing ID (mm) | Hub Length | Bearing Size | Load (Kg) | Load @ Speed |
|---|---|---|---|---|---|---|---|
| 1 | 2.10C-4 | 3 | 20 | 75 | 6204 RS | 265 | 20 km/h |
| 2 | 2.50C-4 | 3 | 25 | 75 | 6005 2RS | 535 | 20 km/h |
| 3 | 5.50F-8 | 3 | 35 | 88 | 6007 2RS | 615 | 20 km/h |
| 4 | 6.00E-9 | 6 | N/A | N/A | N/A | N/A | N/A |
| 5 | 5.50F-10 | 4 | Sleeve bearing | 88 | Sleeve 42/49 mm | 1400 | 20 km/h |
*Customizable Features:
1. Bearing/Hub Changes: Customer-specific changes possible in bearing/hub and other design parameters.
2. Customization Options: PCD, # of holes, and RAL color can be fully customized.
1. Bearing/Hub Changes: Customer-specific changes possible in bearing/hub and other design parameters.
2. Customization Options: PCD, # of holes, and RAL color can be fully customized.
Rims under development
2.50A-8
3.00D-8
5.00F-10
4.00-9 Split Rim
5.00 -10 Split Rim
Split Rim
Partner with GTTS to design and manufacture rim wheels tailored to your specific needs.
Our team of experts is ready to deliver reliable, high-performance solutions for your specialized applications.
